Industrial sterilizer — UHT tubular, scraped-surface and retort systems
Sterilisation is the step that makes ambient-stable, low-acid products possible. MCF Technology supplies continuous UHT sterilizers (tubular, plate, scraped-surface, direct steam injection) and batch retorts for packed products, always with a holding section sized on the target F0 value and a validation dossier that auditors and lenders can read.
What MCF Technology supplies
- Tubular or scraped-surface sterilizer with regeneration and controlled cooling
- Direct steam injection with vacuum flash cooling for dairy and plant-based drinks
- Holding tube / holding cell sized on the validated F0 target
- Aseptic surge tank, sterile air and steam-barrier valve clusters
- Batch or continuous retorts (water immersion, spray, rotary) for packed products
- SIP/CIP sequences, temperature recording and thermal validation documentation
Typical outputs
- UHT milk, cream and plant-based drinks (138–145 °C, 2–6 s)
- Tomato paste, purées and sauces (95–110 °C)
- Ready meals, pet food and baby food in retort packs
- Aseptic bulk product for drums, IBC and bag-in-box
- Low-acid beverages and coffee-based drinks
Download — PDF
industrial sterilizer — technical datasheet
A real engineering datasheet, not a brochure: the same data published on this page, formatted for your technical and financial review.
Technical data & process
Reference configuration, specifications, step-by-step process
Dimensions & layout
Footprint, clear height, functional zones, utilities and manning
CAPEX & payback
Indicative capacity / CAPEX / EBITDA / payback grid with assumptions
MCF Project Studio
From idea to commissioned plant, in one engineering path
Every commercial page on this site is connected to the same working method: process engineering, capacity sizing, CAPEX and a bankable financial plan over 3–10 years are produced together, not in sequence by different suppliers.
01 · Idea
Is this factory feasible in my country, with my product and my formats?
Start from the guided configurator02 · Engineering
Which capacity, process and utilities does my line actually need?
Compare technologies and lines03 · Investment
What does it cost, what does it return, and is it bankable?
Run the ROI simulator04 · Purchase
Who engineers, installs and services it worldwide?
Request the technical-financial dossier
Sterilisation process, step by step
Sterilisation is a validated thermal sequence, not just a hot exchanger. Every block below is fixed on the product pH, on particle size and on the F0 target agreed with the customer's quality team.
- 1
Feed and deaeration
Balance tank · vacuum deaerator
Product is fed at constant pressure and dissolved oxygen is removed, which protects colour and vitamins during the high-temperature step.
- 2
Preheating and regeneration
70–90 °C · up to 90% heat recovery
Regeneration against the outgoing sterile product is the main lever on steam consumption per tonne treated.
- 3
Homogenisation (when required)
150–250 bar, one or two stages
Emulsions are stabilised before or after the sterile block, depending on whether an aseptic homogeniser is used downstream.
- 4
Sterilisation
Tubular / scraped-surface / DSI · 138–145 °C
Indirect tubular or plate heating, scraped-surface for viscous and fouling products, direct steam injection when flavour retention is critical.
- 5
Holding and F0 control
Holding tube 2–6 s · F0 ≥ 3 in retort duty
Lethality is delivered in a holding section sized on measured flow and temperature; below set point, the flow-diversion valve recycles the product.
- 6
Cooling and aseptic buffering
Flash vacuum or regenerative cooling · sterile air
Product is cooled to filling temperature and buffered in an aseptic tank under sterile air, with steam-barrier valve clusters on every connection.
- 7
SIP, CIP and validation dossier
SIP 130 °C · recorded temperature curves
Sterilisation-in-place before every run, automatic CIP after it, and validation records handed over for HACCP, audits and financing files.

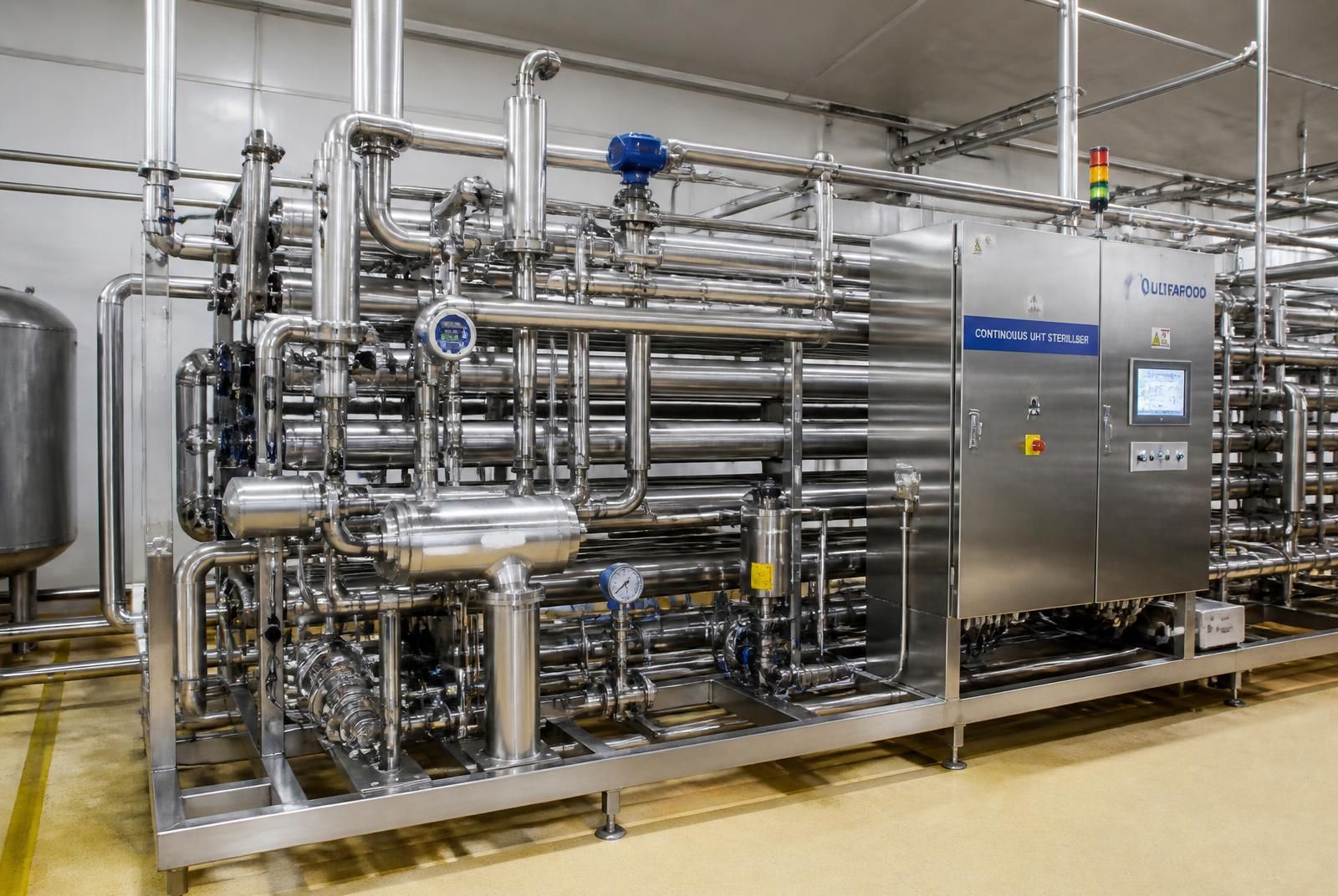

Sterilisers in the field
Continuous UHT sterilisation, holding section and aseptic buffering: the sterile chain that gives ambient shelf life to low-acid products.
Related processes
Explore related industrial sterilizer technologies
A complete industrial sterilizer project typically integrates pasteurization, sterilization, homogenization and aseptic filling. Follow the internal links below to deep-dive into each upstream and downstream stage engineered by MCF Technology.
- aseptic filling machine after sterilisationThe sterile chain from the aseptic tank to the closed pack.
- industrial pasteurizer vs steriliserWhen pasteurisation is enough and when full sterilisation is mandatory.
- aseptic industrial homogenizerUpstream or downstream homogenisation on UHT lines.
- industrial sterilizers pillarEvery MCF line built around UHT and retort sterilisation.
Technical FAQ
Frequently asked questions
Pasteurisation or sterilisation — where is the border?
Pasteurisation reduces vegetative flora and needs cold chain or low pH. Sterilisation targets spores of Clostridium botulinum in low-acid products (pH > 4.6) and gives ambient shelf life: 138–145 °C for seconds in UHT, or F0 ≥ 3 in a retort.
Tubular, plate or scraped-surface?
Plate for clean, low-viscosity liquids; tubular for pulps, fibres and particles up to about 10 mm; scraped-surface for high-viscosity or fouling products such as concentrated paste, cream cheese and fruit preparations.
Direct or indirect heating?
Direct steam injection heats in a fraction of a second and best preserves flavour, but requires culinary-grade steam and flash cooling. Indirect tubular heating is simpler to operate and recovers up to 90% of the heat.
How is F0 validated?
By calculating the lethality delivered along the holding section from measured temperature and flow, then confirming it with penetration tests or data loggers in retort duty. Curves and records are handed over as validation documentation.
What capacities does MCF supply?
Continuous sterilizers from 1 000 to 40 000 l/h and retort batteries sized on packs per hour and cycle time, both integrated with upstream mixing and downstream aseptic or post-process filling.
Is a sterilizer enough for aseptic shelf life?
No — the package and the whole downstream path must be sterile too. MCF delivers the steriliser together with the aseptic tank, valve clusters and aseptic filler so the sterile chain is unbroken.
