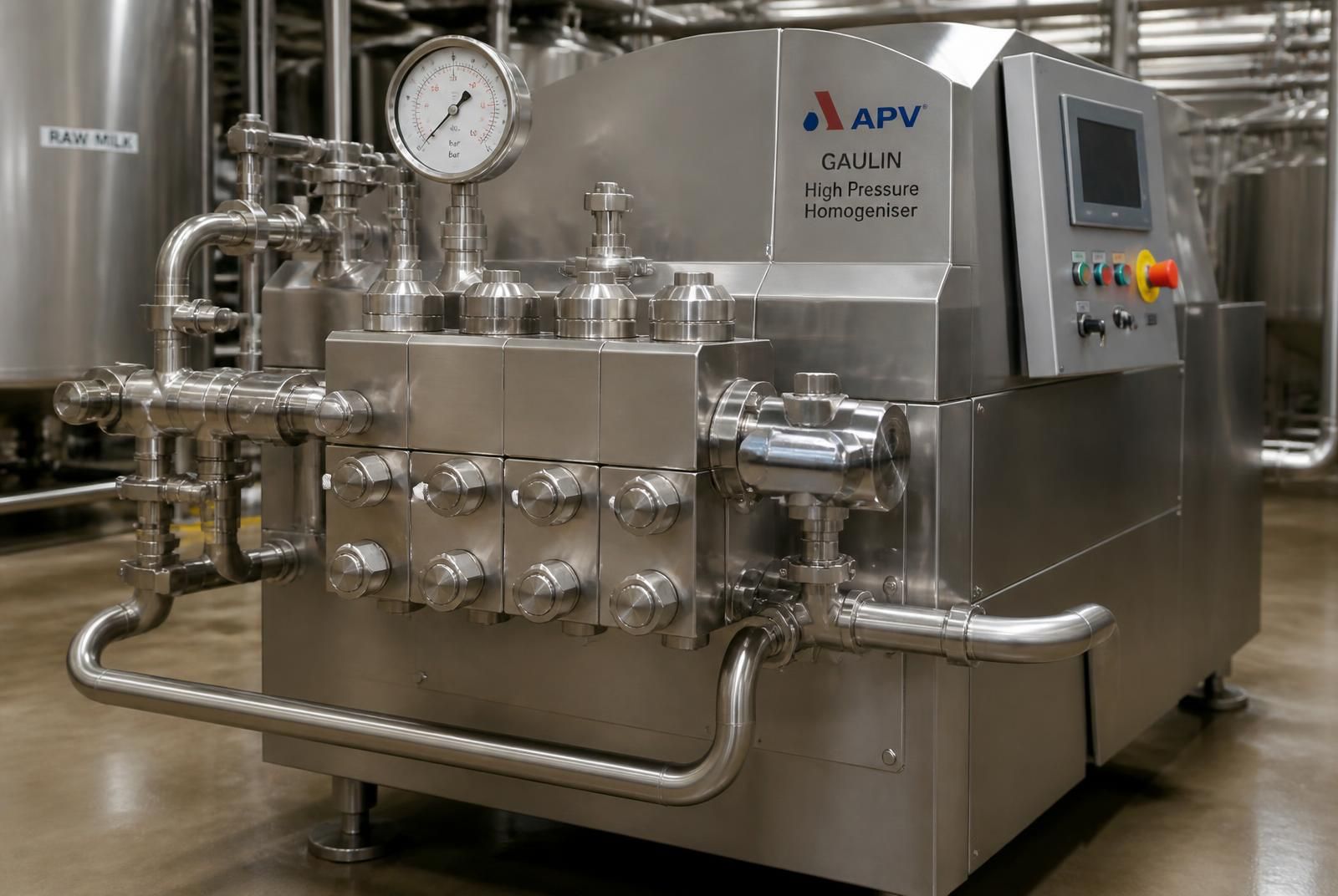

Industrial homogenizer — high-pressure units for dairy, juice and sauces
A homogenizer stabilises an emulsion by forcing product through a valve gap at high pressure: fat globules and particles are reduced to a fraction of a micron, so creaming, sedimentation and phase separation stop. MCF Technology sizes homogenizers together with the thermal treatment, because pressure, temperature and position in the line determine the result far more than the machine badge.
What MCF Technology supplies
- High-pressure homogenizers from 500 to 40 000 l/h, up to 1 500 bar
- One- or two-stage homogenising valve with tungsten-carbide or ceramic seats
- Hygienic block with aseptic execution for UHT and aseptic lines
- Upstream / downstream positioning study against the pasteurizer or steriliser
- Optional in-line mixing, deaeration and de-agglomeration modules
- Pressure recording, spare kit and preventive maintenance schedule
Typical outputs
- Milk, cream and flavoured dairy drinks
- Plant-based drinks (soy, oat, almond, rice)
- Juices, nectars and purées
- Ketchup, sauces, mayonnaise and emulsions
- Ice-cream mixes and dairy desserts
Download — PDF
industrial homogenizer — technical datasheet
A real engineering datasheet, not a brochure: the same data published on this page, formatted for your technical and financial review.
Technical data & process
Reference configuration, specifications, step-by-step process
Dimensions & layout
Footprint, clear height, functional zones, utilities and manning
CAPEX & payback
Indicative capacity / CAPEX / EBITDA / payback grid with assumptions
MCF Project Studio
From idea to commissioned plant, in one engineering path
Every commercial page on this site is connected to the same working method: process engineering, capacity sizing, CAPEX and a bankable financial plan over 3–10 years are produced together, not in sequence by different suppliers.
01 · Idea
Is this factory feasible in my country, with my product and my formats?
Start from the guided configurator02 · Engineering
Which capacity, process and utilities does my line actually need?
Compare technologies and lines03 · Investment
What does it cost, what does it return, and is it bankable?
Run the ROI simulator04 · Purchase
Who engineers, installs and services it worldwide?
Request the technical-financial dossier
Homogenisation process, step by step
Homogenisation is a mechanical treatment measured in bar and microns. The steps below describe how MCF fixes pressure, position and valve configuration on the customer's product.
- 1
Product characterisation
Fat %, viscosity, particle size distribution
The starting emulsion is measured: without a baseline particle-size distribution there is no way to prove the homogeniser delivered what was specified.
- 2
Feed conditioning
Feed pressure 2–4 bar · 60–75 °C
The homogeniser is fed at controlled pressure and temperature: hotter product needs less pressure for the same droplet size, which cuts energy.
- 3
First-stage homogenisation
150–400 bar · carbide or ceramic seat
Product passes the valve gap at very high velocity: cavitation, shear and impact break fat globules and agglomerates below one micron.
- 4
Second-stage back pressure
About 10% of total pressure (20–50 bar)
The second stage breaks the clusters that re-form right after the first gap and stabilises the flow, preventing pulsation downstream.
- 5
Integration with thermal treatment
Upstream 60–70 °C · aseptic downstream option
In pasteurised dairy the unit sits between regeneration and final heating; in UHT lines an aseptic homogeniser can be placed after sterilisation.
- 6
Verification
Particle size, creaming index, 7–30 day shelf test
Results are checked on samples and on accelerated shelf tests, not only on the pressure gauge reading.
- 7
Maintenance and spares
Wear parts on running hours · recorded pressure
Valve seats, plungers, seals and oil follow a scheduled plan; the spare kit is delivered with the machine to avoid campaign stops.
Homogenizers in the field
High-pressure homogenisers integrated with pasteurisation and UHT: valve block, pressure control and the position in the line.
Related processes
Explore related industrial homogenizer technologies
A complete industrial homogenizer project typically integrates pasteurization, sterilization, homogenization and aseptic filling. Follow the internal links below to deep-dive into each upstream and downstream stage engineered by MCF Technology.
- industrial pasteurizer with homogeniserIntegrated dairy and juice skids where both steps share one circuit.
- UHT industrial sterilizerAseptic downstream homogenisation on ambient-stable products.
- industrial mixing system upstreamBlending, powder induction and syrup rooms before homogenisation.
- homogenizers pillarEvery MCF line where high-pressure homogenisation is decisive.
Technical FAQ
Frequently asked questions
Which pressure does my product need?
Drinking milk is normally homogenised at 150–200 bar, cream at 80–120 bar, plant-based drinks at 200–250 bar and fine emulsions or sauces at 250–400 bar. The exact figure is fixed on samples during trials.
Why a two-stage valve?
The first stage breaks the globules; the second, at about 10% of the total pressure, breaks up the clusters that re-form immediately afterwards. Two stages are standard on milk, cream and plant-based drinks.
Before or after heat treatment?
In pasteurised dairy the homogenizer usually sits between regeneration and final heating (upstream, 60–70 °C). In UHT lines aseptic downstream homogenisation is used when the emulsion must be stabilised after sterilisation.
How much power does it draw?
Roughly 0.5–0.9 kW per m³/h per 100 bar, so pressure has a direct effect on running cost: over-specifying pressure is one of the most common and most expensive mistakes in a new line.
What maintenance does a homogenizer need?
Periodic inspection of valve seats, plungers, seals and oil, with wear parts changed on running hours. MCF supplies the spare kit and the maintenance plan with the machine.
Can a homogenizer be added to an existing line?
Yes — the insertion point, pressure profile and pump characteristics are checked first, then the unit is delivered as a skid with hydraulic and automation interfaces to the existing plant.
Next step
Request a feasibility study for your industrial homogenizer
MCF Technology delivers worldwide — engineering, installation, commissioning and after-sales service on every continent. Send us your throughput target and destination country and we will reply with a preliminary sizing and quote.
