Aseptic filling machine — food processing equipment for beverage & food
MCF Technology supplies aseptic filling machines integrated in turnkey beverage and food processing lines. Every filler is validated on the customer's product, packaging format and target shelf life.
What MCF Technology supplies
- Aseptic surge tank with sterile-air overlay
- Steam sterilization tunnel (SIP) and CIP station
- Peroxide / peracetic bottle sterilization module
- Filler head validated for PET, glass, brik or pouch
- Aseptic zone under HEPA-filtered laminar flow (ISO 5)
- Integrated capping under sterile conditions
Typical outputs
- PET bottles
- Glass bottles
- Brik cartons

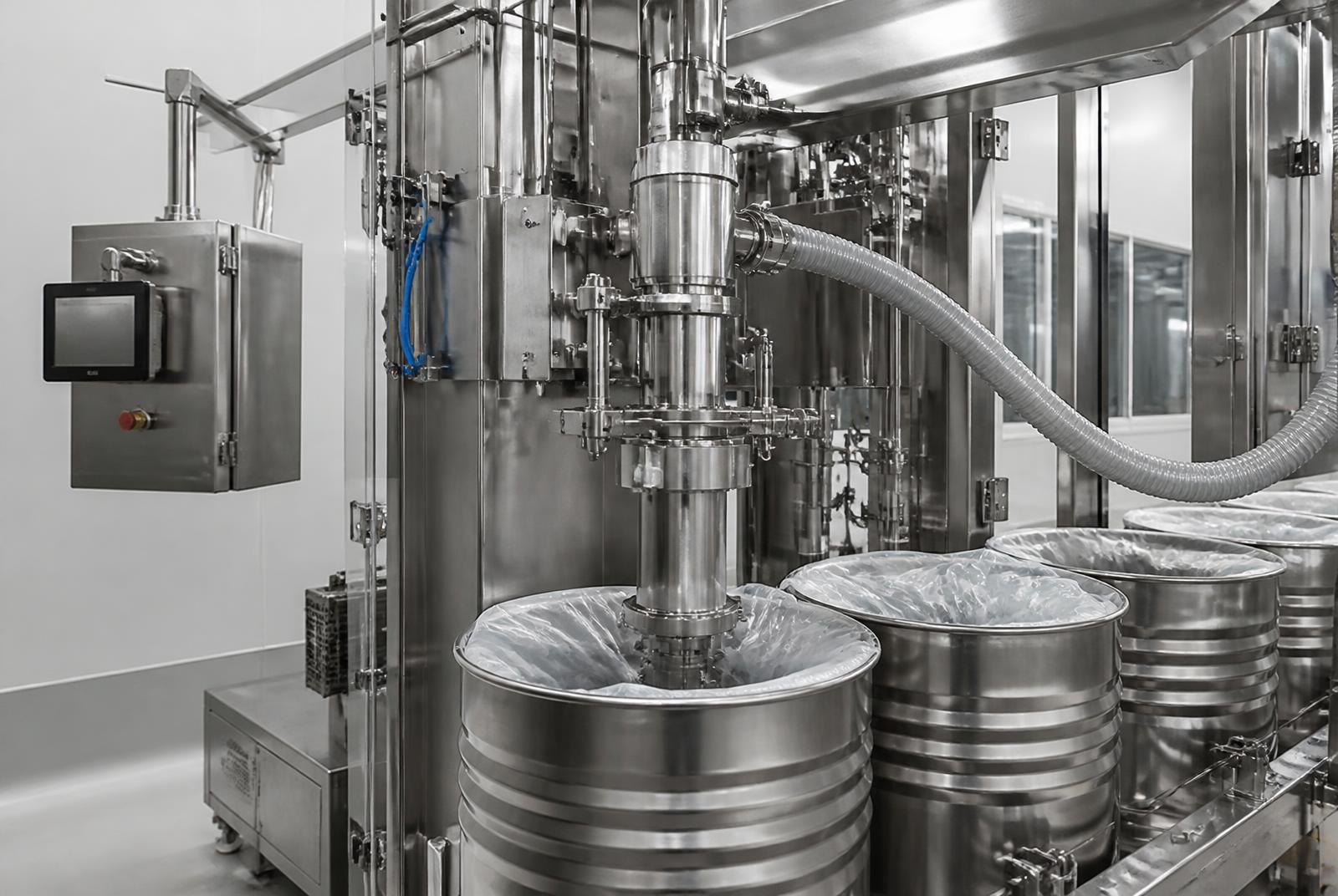

- Aseptic drums (200 L)
- Bag-in-box / IBC
Download — PDF
aseptic filling machine — technical datasheet
A real engineering datasheet, not a brochure: the same data published on this page, formatted for your technical and financial review.
Technical data & process
Reference configuration, specifications, step-by-step process
Dimensions & layout
Footprint, clear height, functional zones, utilities and manning
CAPEX & payback
Indicative capacity / CAPEX / EBITDA / payback grid with assumptions
MCF Project Studio
From idea to commissioned plant, in one engineering path
Every commercial page on this site is connected to the same working method: process engineering, capacity sizing, CAPEX and a bankable financial plan over 3–10 years are produced together, not in sequence by different suppliers.
01 · Idea
Is this factory feasible in my country, with my product and my formats?
Start from the guided configurator02 · Engineering
Which capacity, process and utilities does my line actually need?
Compare technologies and lines03 · Investment
What does it cost, what does it return, and is it bankable?
Run the ROI simulator04 · Purchase
Who engineers, installs and services it worldwide?
Request the technical-financial dossier
Aseptic filling process, step by step
Aseptic filling means sterilising product and package separately, then joining them inside a sterile zone. Each block below is validated on the customer's product and format.
- 1

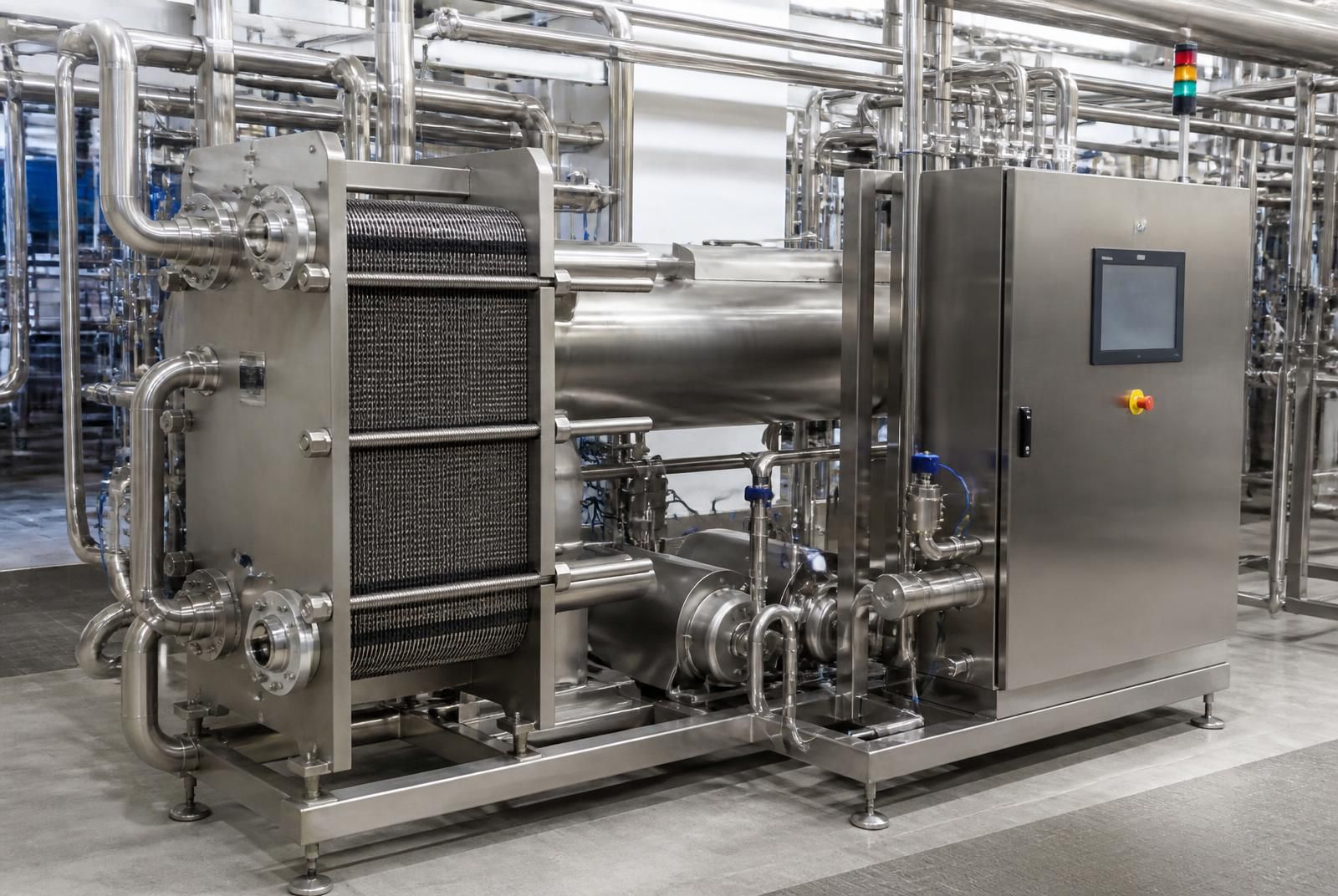

Product sterilisation (UHT)
Tubular or plate exchanger, 95–140 °C
Direct or indirect heating to the target lethality, sized on pH, viscosity and particle size of the product.
- 2
Holding tube and cooling
Validated holding time · controlled cooling
The holding tube fixes the sterilising effect; regenerative cooling brings the product to filling temperature while recovering heat.
- 3
Aseptic surge tank
Sterile-air overlay, continuous over-pressure
Decouples steriliser and filler so format changes and short stops do not break the sterile chain.
- 4
Package sterilisation
Steam SIP · H₂O₂ / peracetic · UV
Bottles, cartons, bags or drums are sterilised immediately before filling, with residual peroxide within regulatory limits.
- 5
Sterile filling and sealing
2000–24 000 bph · ISO 5 laminar flow
Volumetric or mass filling inside a HEPA-filtered chamber, capping or sealing under sterile conditions.
- 6
Validation and traceability
Temperature curves, SIP/CIP logs, batch records
Commissioning delivers the thermal validation dossier and shelf-life test protocol: 6 months for juices and UHT milk, up to 24 months for aseptic tomato paste.

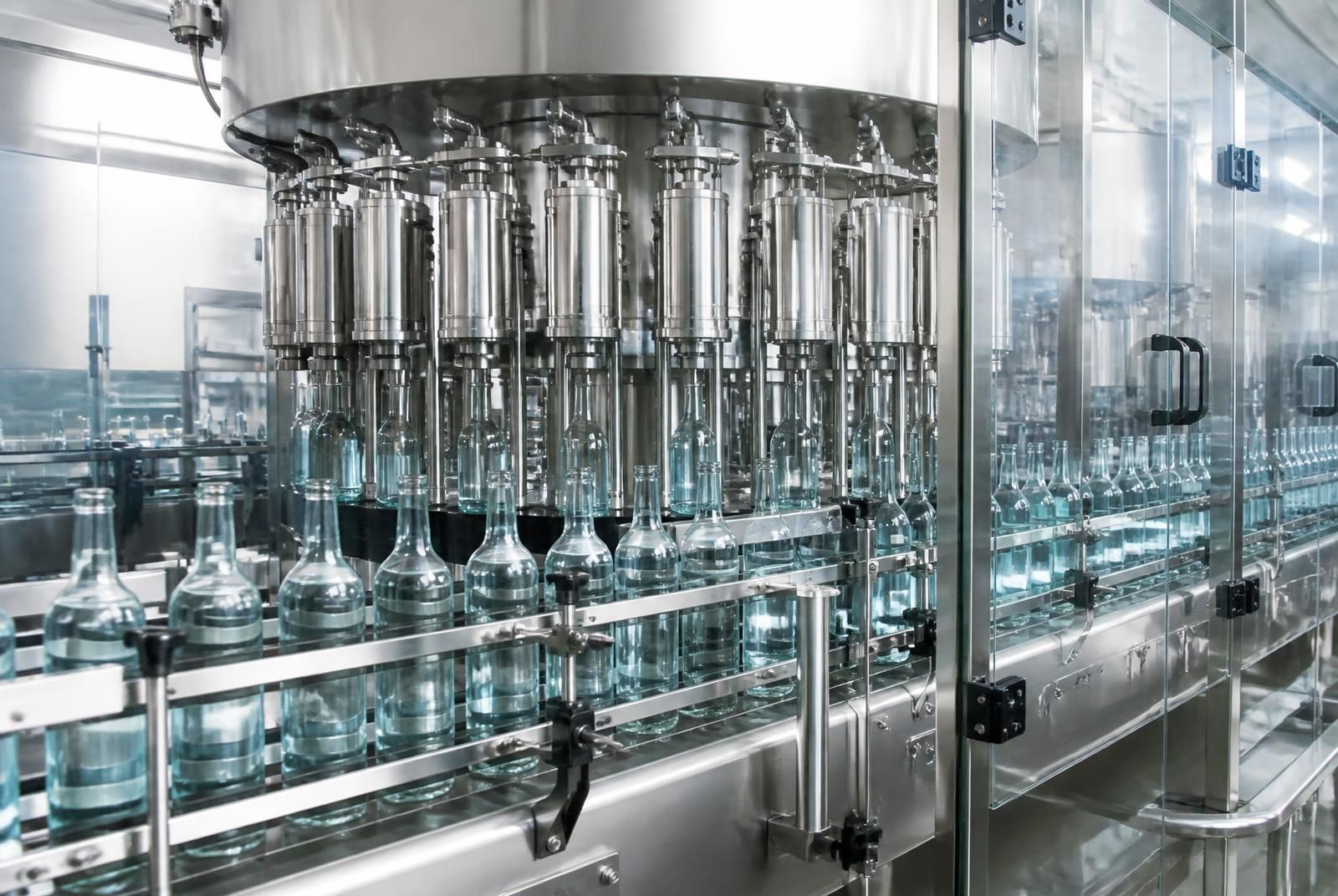

Aseptic filling in operation
Sterilisation, sterile filling and downstream packaging: the three blocks that make an aseptic filling line auditable and repeatable.
Technical deep-dive
aseptic filling machine — benefits, process and specifications
Engineering notes on how MCF Technology configures this aseptic filling machine as integrated food processing equipment, including the aseptic filling machine and bottling line blocks that complete the scope.
Key benefits
- Aseptic filling machine engineered for low-acid, high-acid and dairy-based products at commercial sterility.
- Sterile envelope combining H₂O₂ + hot air bottle decontamination with HEPA-filtered Class 100 filling zone.
- Fits any bottling line: PET, HDPE, glass and carton, with quick-change formats for multi-SKU plants.
- Servo-driven filling valves with mass-flow or volumetric metering — ±0.2 % accuracy.
- Validated FDA / FSSC / EHEDG compliant food processing equipment with 21 CFR Part 11 data.
Process flow
- 1Container feed and neck orientation.
- 2H₂O₂ + hot air sterilisation of bottles and caps.
- 3Rinsing with sterile water in the sterile tunnel.
- 4Servo dosing of the commercially sterile product.
- 5Sterile capping (screw, snap or aluminium foil).
- 6Sterile-air overpressure maintained on the whole aseptic bottling line.
- 7SIP + CIP recovery and automatic sterile boundary verification.
Specifications
- Speed
- 6,000–36,000 bph
- Container
- PET · HDPE · Glass · Carton
- Sterilisation
- H₂O₂ + hot air (35 % · 60 °C)
- Filling accuracy
- ±0.2 % volumetric / mass-flow
- Sterile run time
- ≥ 120 h before SIP
Related processes
Explore related aseptic filling machine technologies
A complete aseptic filling machine project typically integrates pasteurization, sterilization, homogenization and aseptic filling. Follow the internal links below to deep-dive into each upstream and downstream stage engineered by MCF Technology.
- UHT milk processing plantUpstream UHT sterilization matched to aseptic filling.
- fruit juice processing lineEnd-to-end juice line feeding aseptic and bottling packagers.
- tomato paste processing plantEvaporation to 28–38 °Brix and aseptic filling of tomato concentrate in bags and drums.
- industrial pasteurizer & UHT sterilizerThermal-treatment units engineered for aseptic packaging.
- CIP cleaning system for aseptic linesSterilization-grade CIP with SIP procedures.
Technical FAQ
Frequently asked questions
What products can be aseptically filled?
Any commercially sterile product with pH < 4.6 (juices, tomato products, ready sauces) or fully sterilized products (UHT milk, plant-based drinks, liquid coffee, tea).
Which packaging formats does MCF support?
PET (up to 2 L), glass (up to 1 L), brik (200 mL, 500 mL, 1 L), retort pouch, bag-in-box (5 – 20 L), drum (200 L) and IBC (1000 L).
What speed can the filler reach?
From 2000 bph on aseptic drum / IBC lines up to 24 000 bph on high-speed PET and brik lines.
How is the sterile zone maintained?
ISO 5 laminar-flow chamber, HEPA-filtered sterile air, continuous over-pressure and validated SIP cycles before each production run.
Is the machine CE-marked and EHEDG-compliant?
Yes. All aseptic fillers are CE-marked under the EU Machinery Directive and designed following EHEDG hygienic-design guidelines.
What is the typical shelf life achieved?
6 months at ambient temperature for aseptic UHT milk and juices, up to 24 months for tomato paste in aseptic drums, subject to product validation.
